STABALUX AK-H

The idea of clarity

Stabalux AK-H for timber facades and roofs

Natural beauty

Stabalux Wood is characterized by the aesthetic and purposeful combination of the two materials wood and aluminium. The atmospheric warmth of wood on the inside combined with the resistance and lightness of aluminium on the outside. Technical advantages such as excellent insulating values, various gasket options and a large range of cappings, combine with the natural material of wood to form the optimal unit for architects and building owners.

Advantages of Stabalux Wood:

  • Best Uf-values extending to passive house compliance
  • G30 and F30 fire protection applications with same optics and no additional system accessories
  • Wood type and support structure design are freely selectable
  • Architects and planners design their own cross sections

Downloads

Construction details

System cross-sections
Systemschnitte Stabalux AK-H

System cross-sections

System Stabalux AK-H

Download DWG | 1003 kb

Roof connection

Dachanschluss Ausführung mit Stufenglas

Roof connection

Implementation with stepped-edge glazing

Download DWG | 921 kb

Dachanschluss Ausführung mit durchgeführten Deckleisten

Roof connection

Ausführung mit durchgeführten Deckleisten

Download DWG | 926 kb

Dachanschluss Ausführung mit Regenrinne

Roof connection

Implementation with rain gutter

Download DWG | 941 kb

Ceiling connection
Deckenanschluss

Ceiling connection

System Stabalux AK-H

Download DWG | 917 kb

Intermediate ceiling
Anschluss vor Geschossdecke

Connection in front of storey ceiling

Posts separated storey-wise

Download DWG | 904 kb

Wall connection

Firstanschluss

Ridge connection to wall

System Stabalux AK-H

Download DWG | 842 kb

Horizontaler Wandanschluss an Wärmedämmverbundsyste

Horizontal wall connection

System Stabalux AK-H

Download DWG | 907 kb

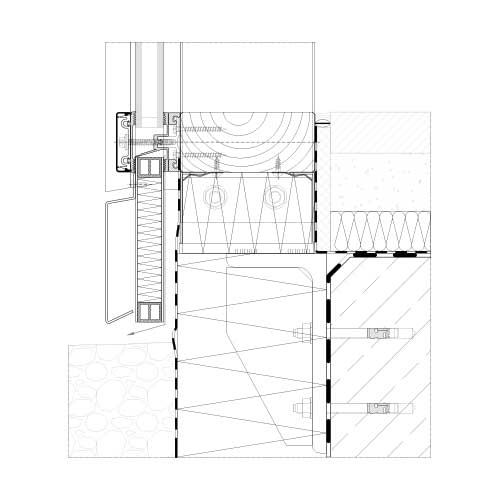

Base point

Fusspunkt Befestigung Mittelpfosten vor Bodenplatte

Base point facade

Anchoring on base plate

Download DWG | 952 kb

Fusspunkt Befestigung Mittelpfosten auf Bodenplatte (Riegelfahne ausgeklinkt)

Base point facade

Anchoring on base plate

Download DWG | 933 kb

Befestigung Mittelpfosten auf Bodenplatte (Riegelfahne durchlaufend)

Base point facade

Anchoring in front of base plate

Download DWG | 913 kb

Windows

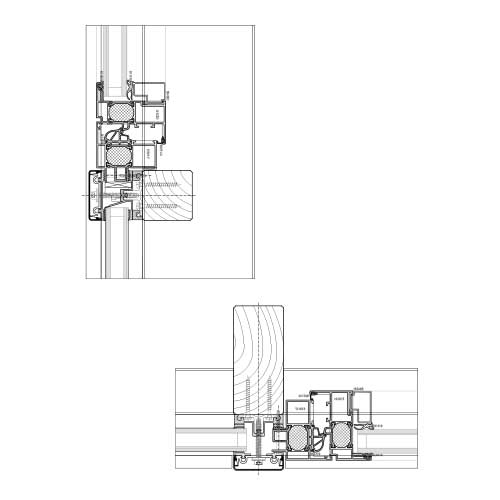

Einsatzfenster

Insert window HUECK

Series 1.0 IF

Download DWG | 958 kb

Einsatzfenster

Insert window HUECK

Series 1.0

Download DWG | 959 kb

Dachflächenfenster flächenbündig

Roof window HUECK

Series 85E

Download DWG | 931 kb

Einsatzfenster

Insert window Hahn

Series louvre windows S9 iVt-05

Download DWG | 908 kb

Doors

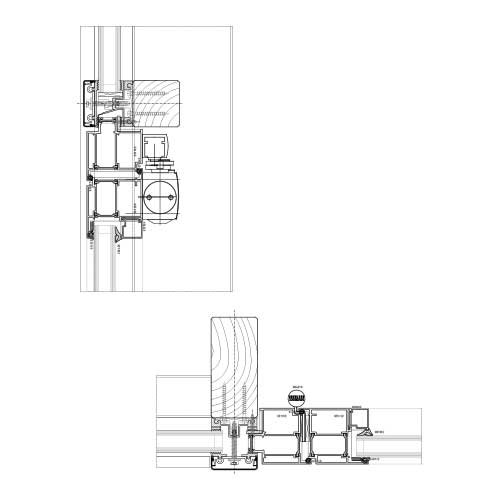

Einsatztür auswärts

Insert door outward HUECK

Series 1.0

Download DWG | 955 kb

Einsatztür einwärts

Insert door inward HUECK

Series 1.0

Download DWG | 960 kb

Performance data

Systemwidth60, 80 mm
Air permeability EN 12152AE
Water tightness EN 12154/ENV 13050static
dynamic
RE 1500 Pa
250 Pa/750 Pa
Resistance at wind load EN 13116Permissible load
Increased load
2,0 kN/m²
3,0 kN/m²
Impact resistance EN 14019I5/E5
Clamping joint
Permit Z-14.4-767
Glas weights dependent on construction≤ 1030 kg
Uf – ValueUf = 0,69 W/(m²K)
Glass thickness 44 mm, Insulating block
