Curtain Wall Facade & Glass Roof by Stabalux

Stabalux supplies approved and EN13830 tested system products for filigree glass facades and glass roofs. The post and beam construction made of steel and wood meets the highest requirements for passive house standards.

Intelligent simplicity of the systems is characterized by few items and easy installation. The processing of the systems can be done with the simplest means. These features offer you a noticeable competitive advantage. In addition, we are focused on supporting you quickly and competently at every point..

In addition to information about our products, the Stabalux website should also give you helpful information on sustainable building with glass facades and glass roofs. Therefore, we are pleased to receive comments and suggestions on how to improve our website in terms of presentation and content.

Water Tower Assendelft
Beautiful view over the Zaanse landscape

Klöckner Pentaplast
First glass facade project with bamboo

RATP Marguerite
High out at the Parisian station Chatelet les Halles

Pavillon Dublin
Above the rooftops of Dublin

Infinity Amsterdam
A shoe as a glass facade

  • Easy

    Stabalux mullion-transom systems are technically cleverly thought-out. They consist of few components. Simple production and assembly save time and effort.

  • Fast

    You will receive your qualified offer within 48 hours. Your order is ready to ship within 24 hours.

 top channel

New top channel made of aluminum or steel

During the development of the new add-on channels Stabalux AK-S and Stabalux AK-H, we focused on the use and reduction of the most important system components.

The Stabalux add-on channel is the only attachment system on the market in the combination clamping connection and detailed glass overlay tables at the DIBT with the number Z-14.4.767 generally building authority approved.

Glasses between 8 and 60 mm in thickness can be used, and the approved glass supports for glass weights of up to 1,450 kg are unique among all attachment channels on steel.

The Stabalux AK system, like all Stabalux mullion and transom systems, meets the requirements of the current EnEV (Energy Saving Ordinance) with a Uf value of up to 0.69 W / (m²K). The system is suitable for both new construction and refurbishment.
The Stabalux AK-S system is available in the face widths 50, 60 and 80 mm.

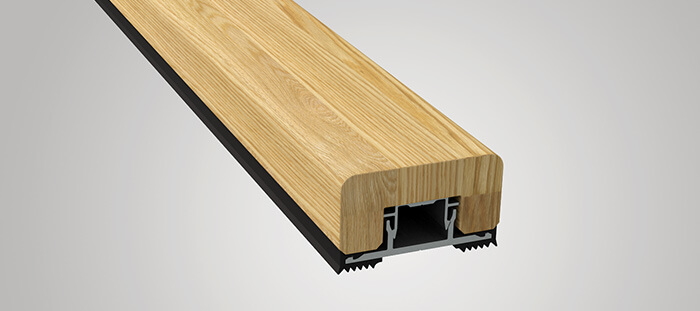

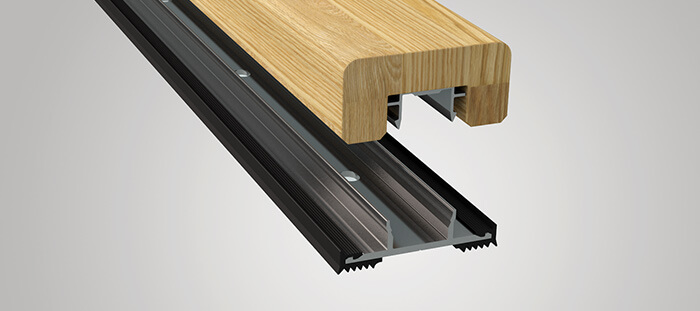

Cover profile made of wood

Due to the perfectly coordinated aluminum top and top rails as well as the corresponding external gaskets, it is now possible to easily mount wooden cover profiles in the face widths of 50, 60 and 80 mm.

Further information and installation instructions can be found in our processing guidelines.

connector aluminum

New waling connectors made of aluminum

Stabalux GmbH was one of the first system suppliers of mullion-transom façade systems to have received a general construction supervisory approval with a validity of 5 years for transom connectors in combination with glass supports / glass supports.

The new Tie Rod Connectors (RHT) offer processors the cost-effective solution to a simple bolted assembly already coated steel profiles on the construction site or in the workshop – entirely without welding. The steel profiles do not have to be notched out for this, but only sawn straight and punched.

The aluminum bolt connectors are characterized by their particularly high load capacity of up to 1011 kg , depending on the glass thickness and the bolt profile.

Further applications as connectors of profile joints or as static reinforcement in the form of inserts are possible.

Direct screwing

Stabalux Systems Stabalux H and Stabalux SR are unique due to the direct screw connection technology , The systems consist of a few components, which are bolted directly to the substructure. The screw connection takes place directly into the channel at each required point. The installation of the glass facade is therefore simple, fast and error-free.

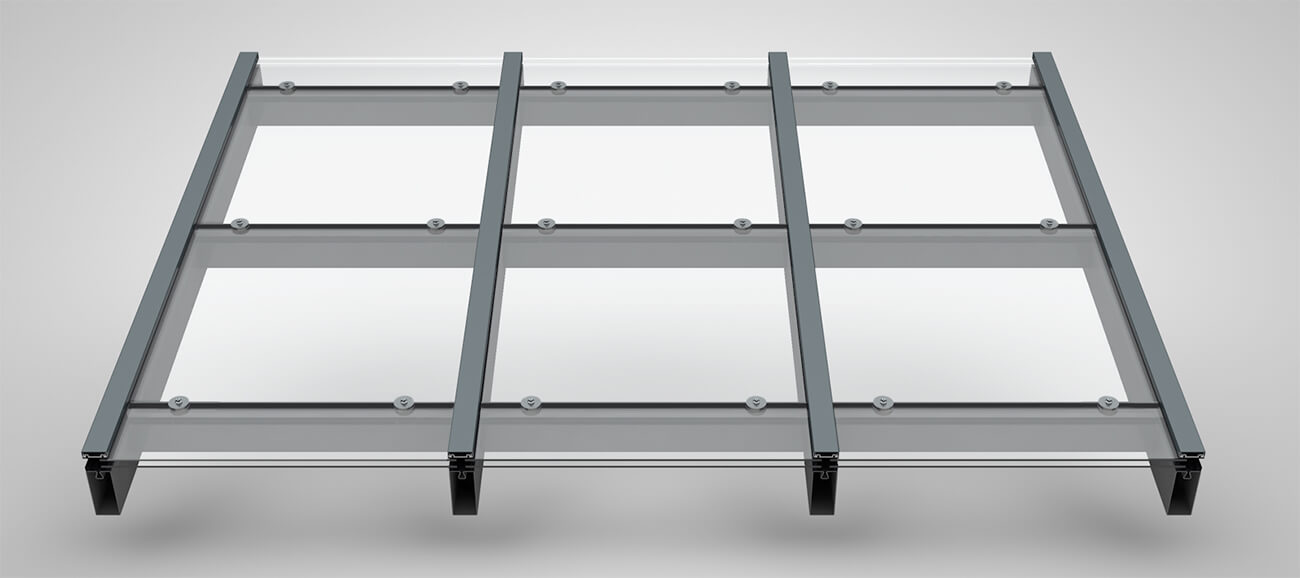

Glass roof from 2 ° inclination

Stabalux supplies tested mullion-transom systems for glass roofs from 2 ° pitch. The test was carried out in accordance with EN 13830. The watertightness was even carried out deviating from the standard with a larger volume of water of 3.4 l / (m²min). The standard specifies 2 l / (m²min). In addition, the impact resistance was tested with increased demand according to Cahier 3228 du CSTB Méthode dessai De choc sur vérriere, weighing 50 kg, from a fall height of 2.40 m instead of 0.95 m. The test applies to the systems:
Stabalux SR , Stabalux ZL-S , Stabalux H , Stabalux ZL-H .

Passive house + Design

Stabalux mullion-transom systems meet the highest standards of passive house construction. At the same time, they offer creative freedom in the realization of demanding projects. These properties are enjoying great popularity among well-known architects, who focus on modern glass architecture. Many of the realized projects received numerous architectural prizes.
