STABALUX AK-S

The idea of clarity

Tightening channel for curtain wall and roof glazing with steel

Reduced effort

Stabalux AK can be processed smoothly and quickly: the tightening channel is screwed directly onto steel, with no need for welding anymore. No problems with corrosion. No special treatment for the connection sites. No risk. Stabalux AK is unique, because it is screwed right onto steel and therefore makes a complete glazing system from Stabalux T or all other special sections.

Simply installed

The tightening channel can be fitted either in the workshop or at the building site.

Downloads

Construction details

System cross-sections
Systemschnitte Stabalux AK-S

System cross-sections

System Stabalux AK-S

Download DWG | 1332 kb

Roof connection

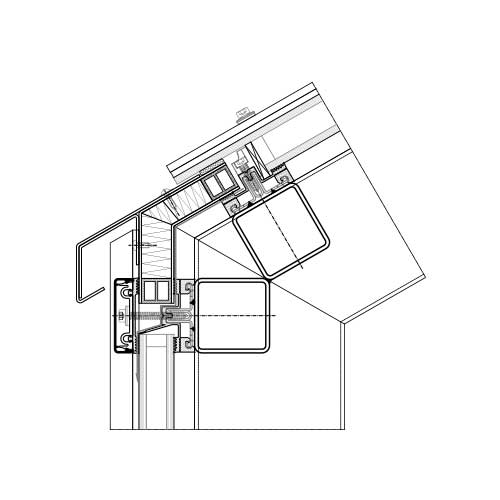

Dachanschluss Ausführung mit Stufenglas

Roof connection

Implementation with stepped-edge glazing

Download DWG | 928 kb

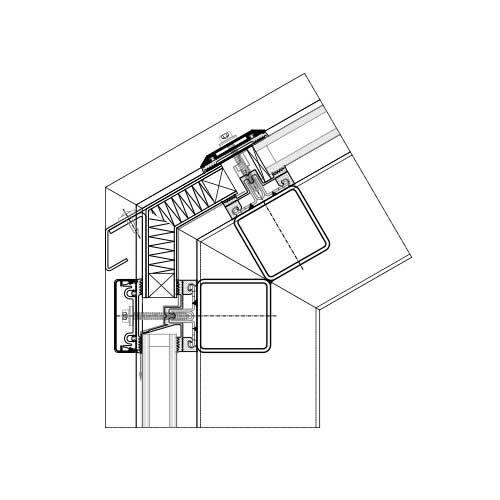

Dachanschluss mit durchgeführten Deckleisten

Roof connection

Ausführung mit durchgeführten Deckleisten

Download DWG | 914 kb

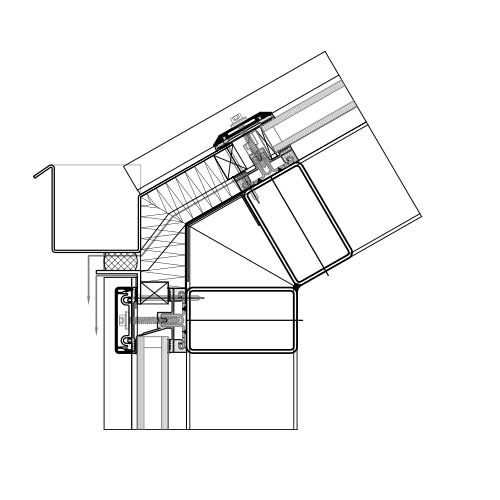

Dachanschluss mit Regenrinne

Roof connection

Implementation with rain gutter

Download DWG | 1158 kb

Ceiling connection
Deckenanschluss

Ceiling connection

System Stabalux AK-S

Download DWG | 901 kb

Intermediate ceiling
Anschluss vor Geschossdecke

Connection in front of storey ceiling

Posts separated storey-wise

Download DWG | 918 kb

Wall connection

Firstanschluss

Ridge connection to wall

System Stabalux AK-S

Download DWG | 908 kb

Horizontaler Wandanschluss an Wärmedämmverbundsystem

Horizontal wall connection

System Stabalux AK-S

Download DWG | 882 kb

Base point

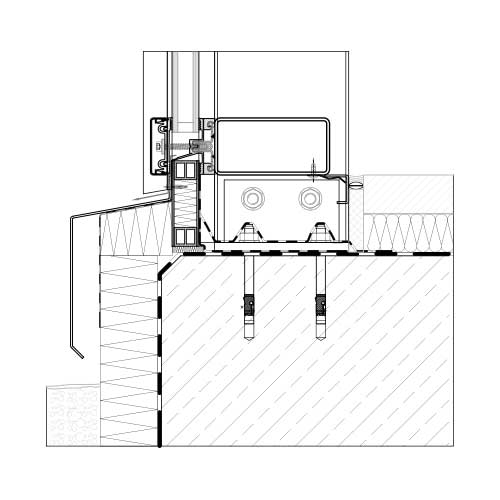

Fußpunkt Mittelpfosten vor Bodenplatte

Base point facade

Anchoring on base plate

Download DWG | 973 kb

Fußpunkt (Riegelfahne ausgeklinkt)

Base point facade

Anchoring on base plate

Download DWG | 911 kb

Fußpunkt (Riegelfahne durchlaufend)

Base point facade

Anchoring in front of base plate

Download DWG | 902 kb

Windows

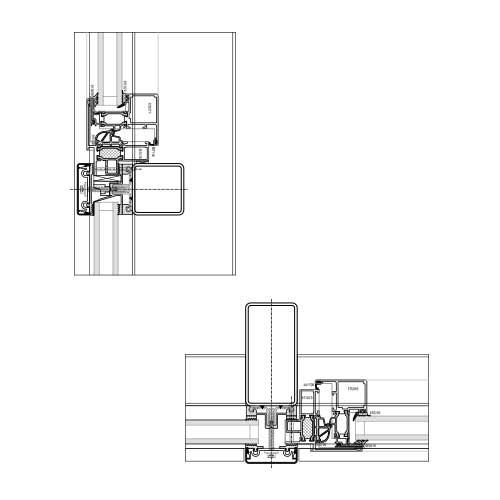

Einsatzfenster

Insert window HUECK

Series 1.0 IF

Download DWG | 962 kb

Einsatzfenster

Insert window HUECK

Series 1.0

Download DWG | 934 kb

Dachflächenfenster flächenbündig

Roof window HUECK

Series 85E

Download DWG | 903 kb

Einsatzfenster

Insert window Hahn

Series louvre windows S9 iVt-05

Download DWG | 1103 kb

Doors

Einsatztür einwärts

Insert door outward HUECK

Series 1.0

Download DWG | 924 kb

Einsatztür auswärts

Insert door inward HUECK

Series 1.0

Download DWG | 927 kb

Performance data

Systemwidth60, 80 mm
Air permeability EN 12152AE
Water tightness EN 12154/ENV 13050static
dynamic
RE 1500 Pa
250 Pa/750 Pa
Resistance at wind load EN 13116Permissible load
Increased load
2,0 kN/m²
3,0 kN/m²
Impact resistance EN 14019I5/E5
Clamping jointPermit Z-14.4-767
Glas weights dependent on construction≤ 1452 kg
Uf – ValueUf ≤ 0,76 W/(m²K)
Glass thickness 44 mm, Insulating block
