STABALUX SR

Het idee van helderheid

Threaded tube system for curtain wall and roof glazing

Economic solutions for sophisticated glass architecture

The Stabalux threaded tube system, which is made of continuously galvanized steel and integrated screw channel technology, greatly reduces planning, manufacturing and installation costs.

The profiles, which are designed in line with the static requirements, are available in various depths and wall thicknesses, and are ideal for high structures and the creation of a large glazed area look. The threaded tube system is not only suitable for standard glazing but, above all, for special glass types such as fire protection glass and structural glazing.

Downloads

Construction details

System cross-sections
Systemschnitte Stabalux SR

System cross-sections

System Stabalux SR

Download DWG | 1122 kb

Roof connection

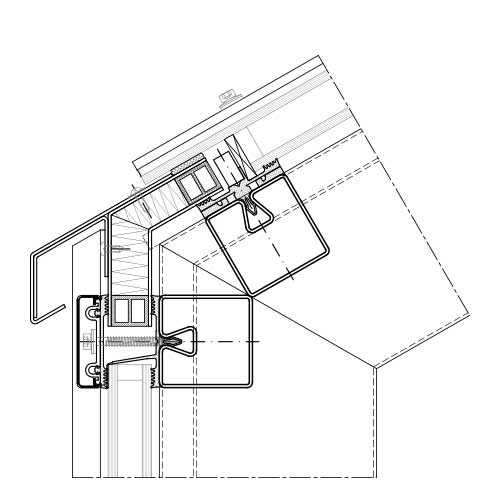

Glasdachanschluss Ausführung mit Stufenglas

Roof connection

Implementation with stepped-edge glazing

Download DWG | 762 kb

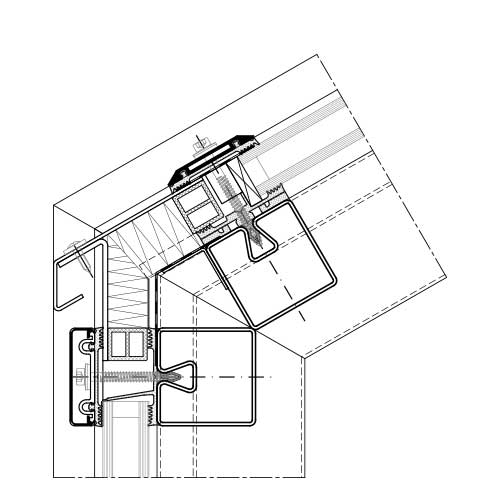

Glasdachanschluss Ausführung mit durchgeführten Deckleisten

Roof connection

Implementation with durchgeführten Deckleisten

Download DWG | 776 kb

Glasdachanschluss Ausführung mit Regenrinne

Roof connection

Implementation with rain gutter

Download DWG | 773 kb

Ceiling connection
Deckenanschluss

Ceiling connection

System Stabalux SR

Download DWG | 781 kb

Intermediate ceiling

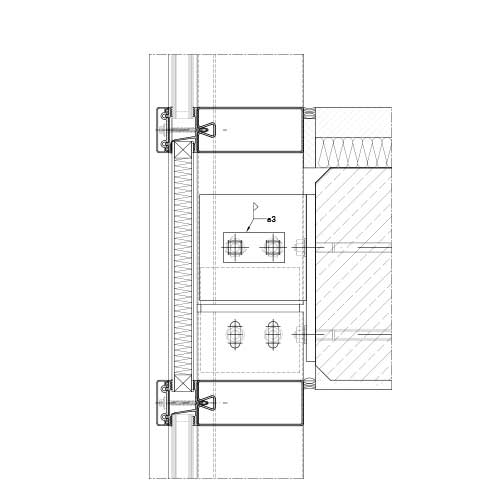

Anschluss vor Geschossdecke

Connection in front of storey ceiling

Posts separated storey-wise

Download DWG | 905 kb

Wall connection

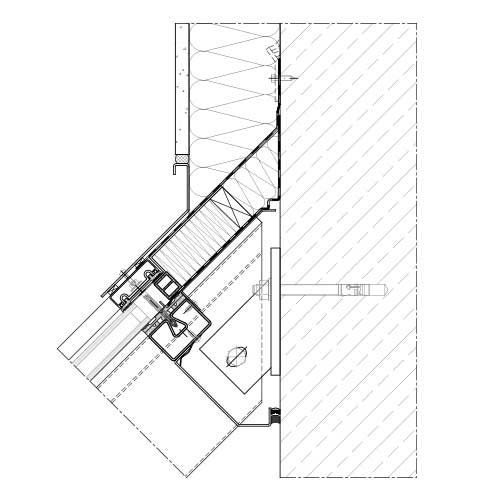

Firstanschluss

Ridge connection to wall

System Stabalux SR

Download DWG | 808 kb

Horizontaler Wandanschluss an Wärmedämmverbundsystem

Horizontal wall connection

System Stabalux SR

Download DWG | 874 kb

Base point

Fusspunkt Mittelpfosten vor Bodenplatte

Base point facade

Anchoring in front of base plate

Download DWG | 865 kb

Fußpunkt (Riegelfahne ausgeklinkt)

Base point facade

Anchoring on base plate

Download DWG | 950 kb

Fußpunkt (Riegelfahne durchlaufend)

Base point facade

Anchoring on base plate

Download DWG | 942 kb

Windows

Lambda WS 075

Insert window HUECK

Serie Lambda WS 075

Download DWG | 1175 kb

Lambda WS 075 IS

Insert window HUECK

Serie Lambda WS 075 IS

Download DWG | 1133 kb

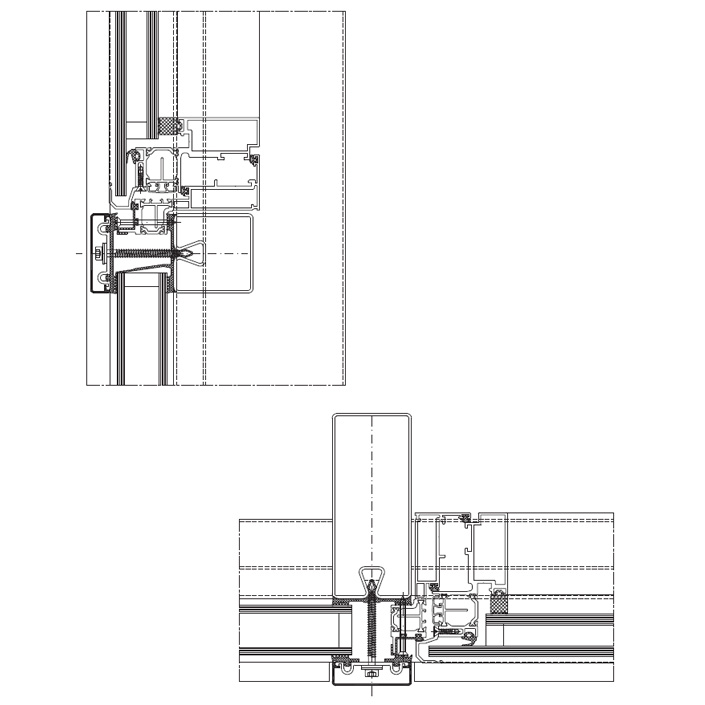

Lambda 110

Top-hung window HUECK

Serie Lambda 110 (outwards)

Download DWG | 907 kb

Dachflächenfenster flächenbündig

Roof window HUECK

Serie 85E

Download DWG | 881 kb

Einsatzfenster Hahn

Insert window Hahn

Serie S9 iVt-05

Download DWG | 922 kb

Doors

Lambda DS 075

Insert door outward HUECK

Serie Lambda DS 075

Download DWG | 1483 kb

Lambda DS 075

Insert door inward HUECK

Serie Lambda DS 075

Download DWG | 1329 kb

Volato M

Sliding System HUECK

Serie Lambda Volato M

Download DWG | 1052 kb

Performance data

Facade 5 mm high gasketFacade to 20° inclination; inner gasket overlapping Roof to 2° inclination
Systemwidth50, 60 mm50, 60 mm50, 60 mm
Air permeability EN 12152AEAEAE
Water tightness EN 12154/ENV 13050static
dynamic
RE 1650 Pa
250 Pa/750 Pa
RE 1650 Pa
250 Pa/750 Pa
RE 1350 Pa*
Resistance at wind load EN 13116Permissible load
Increased load
2,0 kN/m²
3,0 kN/m²
2,0 kN/m²
3,0 kN/m²
2,0 kN/m²
3,0 kN/m²
Impact resistance EN 14019I5/E5I5/E5Weight 50 kg
Height of drop 2,40 m
Clamping jointPermit Z-14.4-444Permit Z-14.4-444Permit Z-14.4-444
Post/beam connectionPermit Z-14.4-498
Permit Z-14.4-742
Permit Z-14.4-498
Permit Z-14.4-742
Permit Z-14.4-498
Permit Z-14.4-742
Glas weights dependent on construction≤ 2654 kg≤ 2654 kg≤ 2654 kg
Fire protection approvalG30 Facade
F30 Facade
G30 Roof
Permit Z-70.4-39
Permit Z-19.14-1451
Permit Z-19.14-1235
Burglar resistance DIN EN 1627RC2, RC3RC2, RC3
Bullet resistance DIN EN 1522/1523bis FB6 NS
Airborne sound insulationbis Rw (C;Ctr) = 48 (-1;-4)dB
Thermal transmission coefficientUf ≤ 0,9 W/(m²K)Uf ≤ 1,0 W/(m²K)Uf ≤ 1,0 W/(m²K)

*) über die Norm hinausgehend wurde die Prüfung mit einer Wassermenge von 3,4l/(m²min) durchgeführt
